Home > Stainless Steel > Stainless Steel Hydraulic Pipes

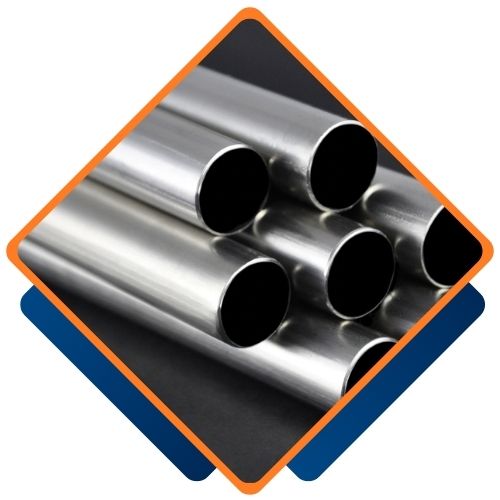

Impex Tube India is a well-known producer and supplier of high-quality pipes and tubes in Mumbai, India, with expertise in Stainless Steel Hydraulic Pipes. Committed to precision, durability, and performance, the company provides hydraulic piping solutions that fulfill the rigorous requirements of industrial and high-pressure fluid systems. Impex Tube India is known for its utilization of high-grade raw materials, state-of-the-art manufacturing technologies, and rigorous quality control processes. Their stainless steel hydraulic pipes are globally trusted for reliability, corrosion resistance, and performance in harsh conditions by various industries and markets.
Stainless Steel Hydraulic Pipes are generally produced with grades such as 304, 316, and 316L, which are made of iron, chromium (18–20%), nickel (8–12%), and molybdenum (in 316/316L). These constituents improve corrosion resistance, especially in chloride environments. The pipes have good mechanical properties such as high tensile strength (up to 600 MPa), good elongation, and pressure-bearing ability. They are capable of resisting high-pressure hydraulic systems with dimensional stability and fatigue resistance. Their smooth inner surface provides uniform fluid flow, and their strong construction makes them appropriate for rigorous hydraulic and pneumatic applications in industrial processes.
| Size Range | OD 6 mm 60.3 mm |
| Standrads | EN 10216-5 TC1/TC2, ASTM A 269, PED 97/23/EC, AD 2000 , NACE MR0175 |
| Dimenisons | ASTM,AISI,ASME,JIS,DIN,EN,GB,BS,SUS |
| Material | SS 304, SS 304L,SS 316,SS 316L, SS 321, SS321H, SS347, Ss347H |
| Surface | bright annealed condition, and pickled + polished condition on customer’s request. |
| advantages | smooth surface, good hardness (below 80 HRB), no defects, clean inside surface, and high precision tolerances |
| Nominal Pipe Size (inches) | Outside Diameter | Hydraulic Pipe Schedule Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 5S | 10S | 40S | 80S | |||||||
| (mm) | (inches) | Wall Thickness and Weight | ||||||||
| mm (in) | kg/m | mm (in) | kg/m | mm (in) | kg/m | mm (in) | kg/m | |||
| 1/8 | 10.3 | 0.405 | – | – | 1.25 (0.049) | 0.28 | 1.73 (0.068) | 0.37 | 2.42 (0.095) | 0.47 |
| 1/4 | 13.7 | 0.540 | – | – | 1.66 (0.065) | 0.49 | 2.24 (0.088) | 0.63 | 3.03 (0.119) | 0.80 |
| 3/8 | 17.2 | 0.675 | – | – | 1.66 (0.065) | 0.63 | 2.32 (0.091) | 0.85 | 3.20 (0.126) | 1.10 |
| 1/2 | 21.3 | 0.840 | 1.65 (0.065) | 0.81 | 2.11 (0.083) | 1.00 | 2.77 (0.109) | 1.27 | 3.74 (0.147) | 1.62 |
| 3/4 | 26.7 | 1.050 | 1.65 (0.065) | 1.02 | 2.11 (0.083) | 1.28 | 2.87 (0.113) | 1.68 | 3.92 (0.154) | 2.20 |
| 1 | 33.4 | 1.315 | 1.65 (0.065) | 1.30 | 2.77 (0.109) | 2.09 | 3.38 (0.133) | 2.50 | 4.55 (0.179) | 3.24 |
| 1 1/4 | 42.2 | 1.660 | 1.65 (0.065) | 1.66 | 2.77 (0.109) | 2.69 | 3.56 (0.140) | 3.39 | 4.86 (0.191) | 4.47 |
| 1 1/2 | 48.3 | 1.900 | 1.65 (0.065) | 1.91 | 2.77 (0.109) | 3.11 | 3.69 (0.145) | 4.06 | 5.08 (0.200) | 5.41 |
| 2 | 60.3 | 2.375 | 1.65 (0.065) | 2.40 | 2.77 (0.109) | 3.93 | 3.92 (0.154) | 5.45 | 5.54 (0.218) | 7.49 |
| 2 1/2 | 73.0 | 2.875 | 2.11 (0.083) | 3.69 | 3.05 (0.120) | 5.26 | 5.16 (0.203) | 8.64 | 7.01 (0.276) | 11.4 |
| 3 | 88.9 | 3.500 | 2.11 (0.083) | 4.52 | 3.05 (0.120) | 6.46 | 5.49 (0.216) | 11.3 | 7.62 (0.300) | 15.3 |
| 3 1/2 | 101.6 | 4.000 | 2.11 (0.083) | 5.18 | 3.05 (0.120) | 7.41 | 5.74 (0.226) | 13.6 | 8.08 (0.318) | 18.6 |
| 4 | 114.3 | 4.500 | 2.11 (0.083) | 5.84 | 3.05 (0.120) | 8.37 | 6.02 (0.237) | 16.1 | 8.56 (0.337) | 22.3 |
| 5 | 141.3 | 5.563 | 2.77 (0.109) | 9.46 | 3.41 (0.134) | 11.6 | 6.56 (0.258) | 21.8 | 9.53 (0.375) | 31.0 |
| 6 | 168.3 | 6.625 | 2.77 (0.109) | 11.3 | 3.41 (0.134) | 13.9 | 7.12 (0.280) | 28.3 | 10.98 (0.432) | 42.6 |
| 8 | 219.1 | 8.625 | 2.77 (0.109) | 14.8 | 3.76 (0.148) | 20.0 | 8.18 (0.322) | 42.5 | 12.70 (0.500) | 64.6 |
| 10 | 273.1 | 10.750 | 3.41 (0.134) | 22.7 | 4.20 (0.165) | 27.8 | 9.28 (0.365) | 60.4 | 12.70 (0.500) | 81.5 |
| 12 | 323.9 | 12.750 | 3.97 (0.156) | 31.3 | 4.58 (0.180) | 36.1 | 9.53 (0.375) | 73.9 | 12.70 (0.500) | 97.4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing stainless steel Hydraulic pipes from Impex Tube India ensures high-quality materials with excellent corrosion resistance and durability. Our products are tailored to meet diverse industry standards, offering reliability and versatility for various applications. Our commitment to customer service and timely delivery makes us a trusted supplier.
Impex Tube India, one of the largest suppliers of Stainless Steel Hydraulic Pipes in Mumbai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| 304 | S30400 | 1.4301 |
| 304H | S30409 | – |
| 304L | S30403 | 1.4306 |
| 310S | S31008 | 1.4845 |
| 316S | S31600 | 1.4436 |
| 316H | S31609 | – |
| 316 TI | S31635 | 1.4571 |
| 316L (2.5 MIN MOLY) | S31603 | 1.4435 |
| 316L | S31603 | 1.4404 |
| 317L | S31703 | 1.4438 |
| 321 | S32100 | 1.4541 |
| 321H | S32109 | – |
| 347 | S34700 | 1.4550 |
Yes, we offer custom sizes for Stainless Steel Hydraulic Pipes to meet your specific requirements. Our team at Impex Tube India is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@impextubeind.com.
Stainless Steel Hydraulic Pipes find extensive applications in high-pressure reliable and leak-proof fluid transmission in systems. They find a critical application in hydraulic circuits and control systems for industrial automation and machinery. They are utilized by the oil and gas industry for hydraulic actuators, subsea installations, and drilling equipment. In marine application, they provide corrosion resistance in propulsion and steering systems. Aerospace, construction machinery, and power generation industries also rely on these pipes for their performance and strength. Their corrosion resistance, clean internal finish, and durability make stainless steel hydraulic pipes perfect for applications requiring safety, precision, and longevity.
