Home > Stainless Steel > Stainless Steel ERW Pipes
Impextubeind, a renowned Mumbai, India-based manufacturer and supplier, deals in high-quality Stainless Steel ERW Pipes designed for strength, durability, and corrosion resistance. Produced with sophisticated Electric Resistance Welding (ERW) technology, these pipes find broad application in structural and fluid conveying applications in a wide range of industries. Famous for their dimensional accuracy and smooth surface finish, Impextubeind’s ERW pipes are made in multiple grades and sizes to meet international standards. With dedication to accuracy, timely delivery, and customer satisfaction, we provide services to industries like construction, water treatment, oil & gas, and general engineering, both domestic and international.
Stainless Steel ERW Pipes are normally made from stainless steel grades such as 304, 316, and 321, having major elements of chromium (18–20%), nickel (8–12%), and trace levels of molybdenum, carbon, and manganese. These compositions have superior corrosion resistance, weldability, and strength. ERW pipes typically have a tensile strength of 500–700 MPa and yield strength in the range of 200–300 MPa, with elongation up to 40%, depending on the grade. The electric resistance welding process provides strong, uniform weld seams and smooth inner and outer surfaces, so these pipes are well suited for low to medium pressure applications.
| Standard Specification | ASTM A312, A270, A249, A269, A268, A358, A213 |
| ANSI / ASME Specification | ANSI/ASME B36.19M, ANSI/ASME B36.10M |

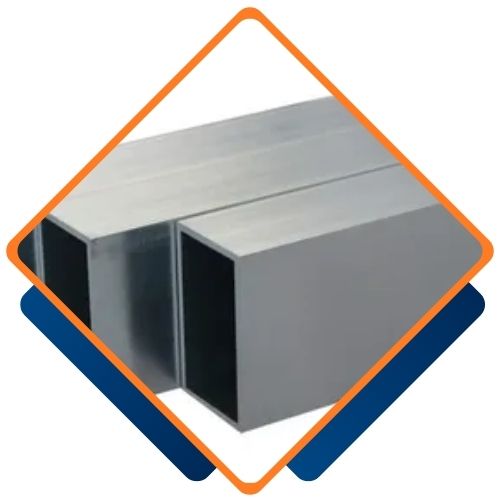

| Shapes and Types we produce | Hex, Hydraulic, Square, Round, Honed, Rectangle |
| Manufacturing Type | Fabricated, 100% X Ray Welded, ERW (Electric Resistance Welded), CDW, Welded |
| Pipe End Forming | Plain One End, Beveled One End, Bevel large end, Bevel one end, Bevel both ends, Beveled end, Bevel small end, Plain Both Ends, Treaded Both Ends, Treaded On End |
| Various TDC Types | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Material Surface Finish | 2B, No.4, No.1, No.8 Mirror Finish or custom Finish as per customer Requirements |
| ASME B36.10 Pipe Schedules | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Available Value Added Services | Color Coding, Cutting, Threading, Grooving, Export Documentation, MTR’s Available, Polishing, Material testing, Beveling, Destructive, Threading, Export Packaging, Destructive, Machining, Non Customer Tagging/ Marking, Ultrasonic Testing |
| Marking |
|
| Grades |
|
| Grade | Elastic Modulus (GPa) | Electrical Resistivity (nΩ.m) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Density (kg/m3) | Specific Heat 0-100°C (J/kg.K) | Thermal Conductivity (W/m.K) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| SS ERW Pipe | 193 | 720 | 17.2 | 17.8 | 18.4 | 8000 | 500 | 16.2 | 21.5 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel ERW Pipes from Impex Tube India ensures high-quality, corrosion-resistant pipes with excellent durability and strength. We provide reliable performance in demanding environments, and our electric resistance Welded (ERW) process guarantees superior precision and consistency in manufacturing.
Impex Tube India, one of the largest suppliers of Stainless Steel ERW Pipes in Mumbai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Nominal size in Inch | Wall thickness in Inch | Outside diameter in mm | Wall thickness in mm | Outside diameter in Inch | Weight [Kg/M] | Weight [lb/ft] |
|---|---|---|---|---|---|---|
| 1/2 Inch | 0.065 | 21.3 mm | 1.65 | 0.840 | 0.80 | 0.54 |
| 3/4 Inch | 0.065 | 26.7 mm | 1.65 | 1.050 | 1.03 | 0.69 |
| 1 Inch | 0.065 | 33.4 mm | 1.65 | 1.315 | 1.30 | 0.87 |
| 1 1/4 Inch | 0.065 | 42.2 mm | 1.65 | 1.660 | 1.66 | 1.12 |
| 1 1/2 Inch | 0.065 | 48.3 mm | 1.65 | 1.900 | 1.91 | 1.28 |
| 2 Inch | 0.065 | 60.3 mm | 1.65 | 2.375 | 2.40 | 1.61 |
| 2 1/2 Inch | 0.083 | 73.0 mm | 2.11 | 2.875 | 3.71 | 2.49 |
| 3 Inch | 0.083 | 88.9 mm | 2.11 | 3.500 | 4.54 | 3.05 |
| 3 1/2 Inch | 0.083 | 101.6 mm | 2.11 | 4.000 | 5.21 | 3.50 |
| 4 Inch | 0.083 | 114.3 mm | 2.11 | 4.500 | 5.88 | 3.95 |
| 5 Inch | 0.109 | 141.3 mm | 2.77 | 5.563 | 9.52 | 6.40 |
| 6 Inch | 0.109 | 168.3 mm | 2.77 | 6.625 | 11.38 | 7.65 |
| 8 Inch | 0.109 | 219.1 mm | 2.77 | 8.625 | 14.87 | 9.99 |
| 10 Inch | 0.134 | 273.1 mm | 3.4 | 10.750 | 22.76 | 15.29 |
| 12 Inch | 0.156 | 323.9 mm | 3.96 | 12.750 | 31.44 | 21.13 |
| 14 Inch | 0.156 | 355.6 mm | 3.96 | 14.000 | 34.56 | 23.22 |
| 16 Inch | 0.165 | 406.4 mm | 4.19 | 16.000 | 41.83 | 28.11 |
| 18 Inch | 0.165 | 457.0 mm | 4.19 | 18.000 | 47.09 | 31.64 |
| 20 Inch | 0.188 | 508.0 mm | 4.78 | 20.000 | 59.70 | 40.12 |
| 22 Inch | 0.188 | 559.0 mm | 4.78 | 22.000 | 65.75 | 44.18 |
| 24 Inch | 0.218 | 610.0 mm | 5.54 | 24.000 | 83.11 | 55.85 |
| 30 Inch | 0.250 | 762.0 mm | 6.35 | 30.000 | 119.09 | 80.02 |
Yes, we offer custom sizes for Stainless Steel ERW Pipes to meet your specific requirements. Our team at Impex Tube India is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@impextubeind.com.
Stainless Steel ERW Pipes find extensive use in industries which require corrosion resistance, mechanical stability, and economical efficiency. For structural supports, handrails, and architectural members in the building industry, for carrying potable and industrial water in water treatment plants, pipelines, and for fluid transport lines in non-critical pressure contexts in the petroleum and gas industries. ERW pipes find frequent use in the food, dairy, and beverage sector for hygienic process piping. They also find application in general engineering, automobile components, and agricultural machinery because of their dependability, simplicity of fabrication, and extended service life.
