Home > Duplex Steel > Duplex Steel EFW Pipes

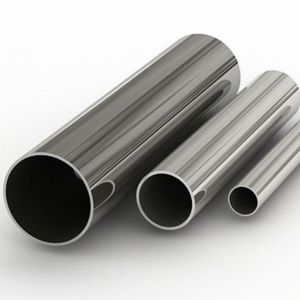

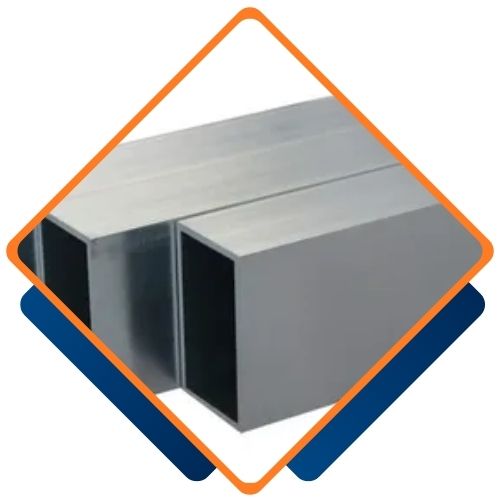

Impex Tube India, a reputable stainless steel organization was formed in Mumbai, India. We have a good reputation for supplying top-quality piping solutions to varied industrial requirements. Impex Tube India is proficient in Duplex Steel EFW Pipes produced with high-quality duplex stainless steel like UNS S31803 and UNS S32205. We provide these pipes in different shapes like round, square, and rectangular, and they possess exceptional strength, very good corrosion resistance, and high durability. With their design for demanding applications, our pipes provide stable performance in adverse conditions.
Our Duplex Steel EFW Pipes consist mainly of 22% chromium, 5–6% nickel, 3% molybdenum, and nitrogen and manganese, which provide improved resistance to corrosion. Their mechanical strength consists of high tensile strength of 620 MPa and yield strength of 450 MPa, and they possess high toughness and resistance to fatigue. With respect to physical properties, they possess a density of 7.8 g/cm³, a melting point of approximately 1350°C, and minimum thermal expansion. All these properties are suitable for application under rigorous conditions in chemical, marine, and offshore sectors.
| ASTM Specification | ASTM A790 ASME SA790 |
|---|---|
| Applicable Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| Size | 4 to 219mm W. T.: 0.5 to 20mm |
| Welded Pipe Size | 5.0 – 1219.2 mm |
| EFW Pipe size | 5.0 – 1219.2 mm |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | Single Random, Double Random, Standard & Cut length Pipe |
| Form | Duplex 2205 Pipe are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
| Type | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW Duplex 2205 Pipe |
| Pipe End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
| Application | Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry |
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Duplex Steel | C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| Duplex Steel | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Selecting Duplex Steel EFW Pipes from Impex Tube India means choosing superior quality and long-lasting performance. Known for their excellent corrosion resistance and strength, our pipes are ideal for a wide range of industrial applications. Backed by our commitment to reliable service and timely delivery, we ensure complete customer satisfaction. With deep expertise in stainless steel solutions, we provide products tailored precisely to your requirements.
Impex Tube India is one of the leading suppliers of Duplex Steel EFW Pipes in Mumbai, India, offering a wide range of premium-quality pipes and tubes designed for diverse industrial applications. With a vast inventory and a strong focus on customer satisfaction, Impex Tube India is a trusted name for stainless steel solutions in the region.
At Impex Tube India, we offer custom-sized Duplex Steel EFW Pipes to meet your exact specifications. Our dedicated team is committed to delivering tailored piping and tubing solutions to suit your unique requirements. For more information, feel free to contact us at sales@impextubeind.com.
Duplex Steel EFW Pipes are widely used in high strength and corrosion resistance-requiring industries. They are most suitable for oil and gas production, chemical processing, marine service, and desalination plants due to their resistance to stress corrosion cracking and longevity. They are also used in heat exchangers, pressure vessels, pulp and paper plants and structural applications where performance and reliability are of utmost importance. Their better mechanical and physical properties make them suitable for operation in high-temperature and high-pressure environments. With low maintenance and long life.
