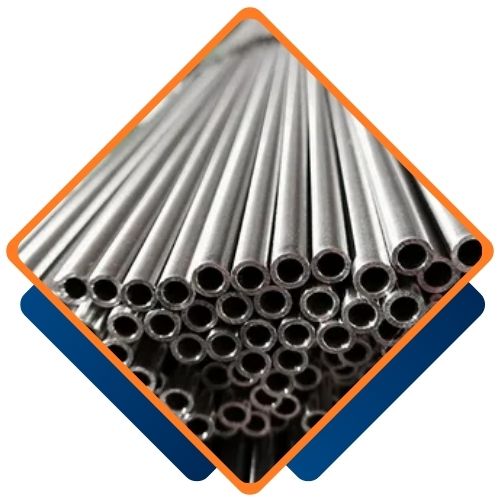

Impex Tube India, a reliable manufacturer and supplier in Mumbai, India, offers high-quality Monel Tubing that is renowned for its excellent strength as well as corrosion resistance. Constructed to satisfy tough industry standards, Monel Tubing from Impex Tube India is developed to function under corrosive and harsh conditions, such as marine and chemical processing use. With a high emphasis on quality, durability, and accuracy, the company supplies numerous industrial segments both locally and globally. Impex Tube India remains an excellent source of top-performing tubing solutions with extended life of service and dependability.
Monel Tubing consists mostly of nickel (around 63%) and copper (28–34%), along with minute amounts of iron, manganese, silicon, and carbon. This combination of alloy provides Monel with superior resistance to corrosion in seawater as well as corrosive environments that are acidic in nature. The tubing has tensile strength from 480 to 620 MPa and a yield strength of approximately 170 MPa along with excellent elongation and impact toughness. Monel Tubing maintains its ductility and strength over a vast temperature range and is very easy to weld, thus ideal for high-stress, high-temperature, as well as highly chemically aggressive industrial uses.
| End | Plain End, Beveled End, Treaded |
|---|---|
| Monel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| Monel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Monel tubing wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Specialize in | Monel Capillary Tube & Other Odd Size Monel Heat Exchanger & Condenser Tubes |
| Monel Tube Standards | ASTM B163, ASTM B730 /ASME SB163, ASME SB730 |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |

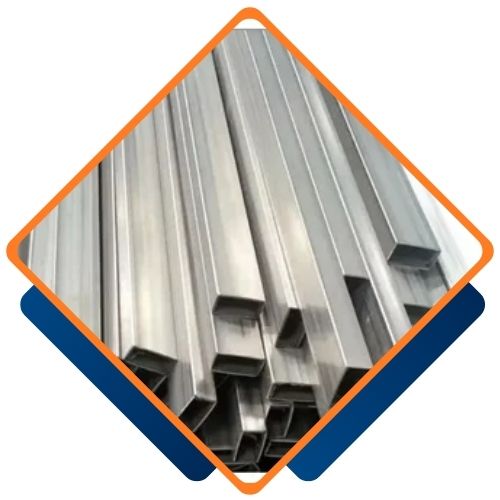

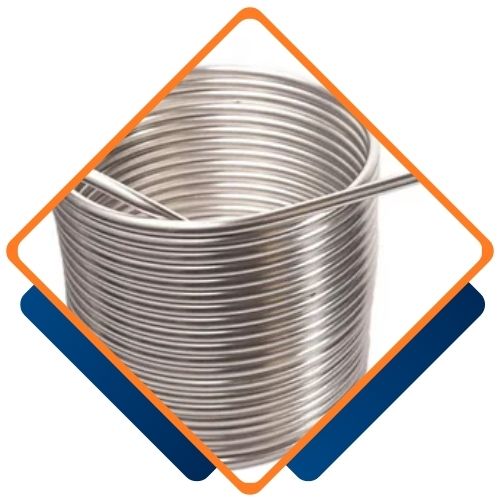

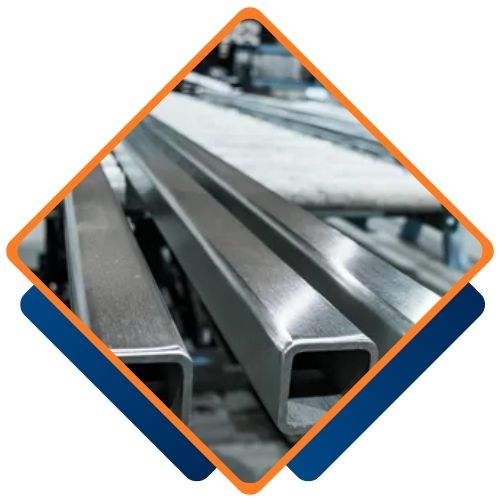

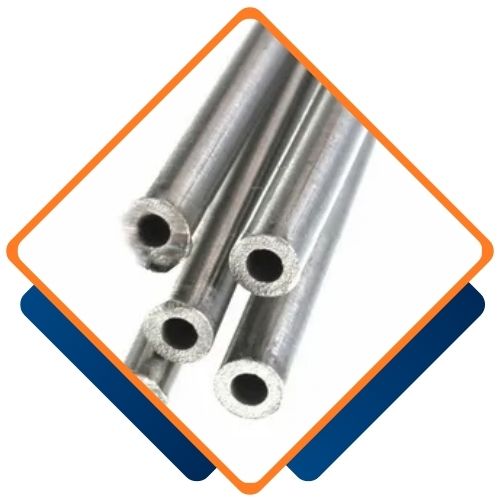

| Monel tube Form | Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc. |

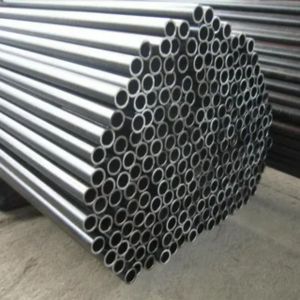

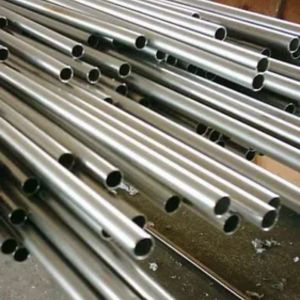

| Monel Tube Type | Seamless, ERW, EFW, Welded, Fabricated |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Marking | All Monel Alloy tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger |
| Monel Alloy Tube Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Monel Alloy tube Length | Single Random, Double Random, Standard & Cut length |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.24max | 28.0-34.0 | 2.50 max | 63.00 min | – |
| Alloy K500 | 0.25 max | 1.50 max | 0.50 max | 0.010max | 27.00 – 33.00max | 0.5 – 2 | 63.00 min | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44g\cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Monel Tubing from Impex Tube India ensures exceptional corrosion resistance, high strength, reliable performance, and superior durability for optimal solutions in various industrial applications.
Impex Tube India, one of the largest suppliers of Monel Tubing in Mumbai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for monel products in the region.
Yes, we offer custom sizes for Monel Tubing to meet your specific requirements. Our team at Impex Tube India is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@impextubeind.com.
Monel Tubing finds wide application in industries demanding superior corrosion resistance and mechanical performance. In marine use, it is applied in seawater systems, condenser tubes, and pump parts because of its saltwater corrosion and biofouling resistance. Monel tubing is applied by the chemical and petrochemical industries for the transportation of aggressive chemicals, acids, and alkalis. In the oil and gas sector, it is used in offshore drilling equipment, heat exchangers, and processing units. It is also used in aerospace systems, power generation plants, and nuclear facilities where material reliability under harsh conditions is critical. Its corrosion resistance and durability guarantee safe, long-term operation.
