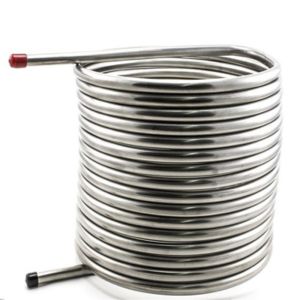

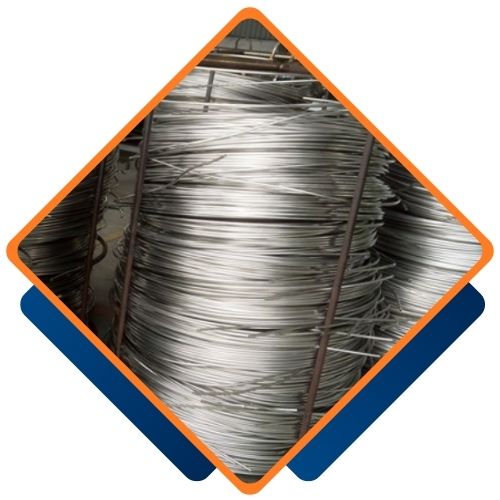

Impex Tube India, a well-known Mumbai, India-based manufacturer and supplier, provides high-quality Monel Coil Tubing suitable for harsh industrial applications. Durable, resistant to corrosion, and having better performance, Impex Tube India’s Monel Coil Tubes conform to international specifications and customer-defined requirements. Impex Tube India’s coil tubes are best suited for application in extreme temperature conditions and corrosive environments. Impex Tube India caters to industries like marine, oil and gas, chemical processing, and power generation, providing dependable and efficient tube products customized to provide long service life and optimal operation.
Monel Coil Tubing consists mainly of nickel (about 63%) and copper (about 28–34%), with trace amounts of iron, manganese, silicon, and carbon. The nickel-copper alloy has outstanding resistance to corrosion, particularly in seawater and acidic conditions. Monel tubing is mechanically characterized by high tensile strength (up to 620 MPa), good yield strength, and superior elongation and impact resistance. It retains toughness over a wide range of temperatures and provides excellent fatigue resistance. Monel’s high workability and weldability properties make it an ideal candidate for intricate, high-performance applications where strength and resistance to corrosion are vital.
| End | Plain End, Beveled End, Treaded |
|---|---|
| Monel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| Monel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Monel tubing wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Specialize in | Monel Capillary Tube & Other Odd Size Monel Heat Exchanger & Condenser Tubes |
| Monel Tube Standards | ASTM B163, ASTM B730 /ASME SB163, ASME SB730 |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Monel tube Form | Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc. |
| Monel Tube Type | Seamless, ERW, EFW, Welded, Fabricated |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Marking | All Monel Alloy tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger |
| Monel Alloy Tube Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Monel Alloy tube Length | Single Random, Double Random, Standard & Cut length |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.24max | 28.0-34.0 | 2.50 max | 63.00 min | – |
| Alloy K500 | 0.25 max | 1.50 max | 0.50 max | 0.010max | 27.00 – 33.00max | 0.5 – 2 | 63.00 min | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44g\cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Monel Coil Tubing from Impex Tube India ensures exceptional corrosion resistance, high strength, reliable performance, and superior durability for optimal solutions in various industrial applications.
Impex Tube India, one of the largest suppliers of Monel Coil Tubing in Mumbai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for monel products in the region.
Yes, we offer custom sizes for Monel Coil Tubing to meet your specific requirements. Our team at Impex Tube India is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@impextubeind.com.

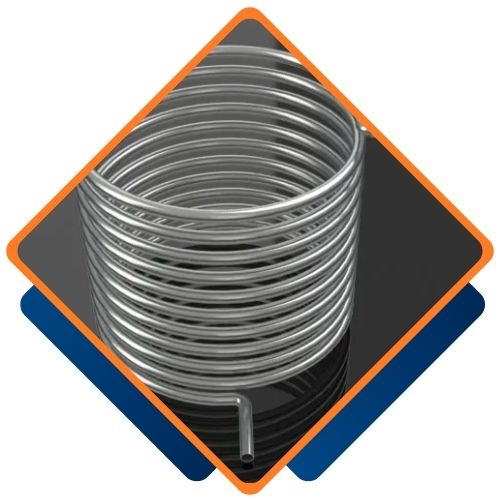

Monel Coil Tubing is extensively applied in applications where mechanical strength and high corrosion resistance are important. It is used in hydraulic control lines, chemical injection lines, and subsea safety systems in the oil and gas industry because it is resistant to high pressure and hostile environments. It is applied in seawater systems, condensers, and heat exchangers in marine engineering for saltwater corrosion resistance. The industry of chemical processing employs it for the safe transfer of acids and alkalis. Also, Monel tubing is used in aerospace equipment, power generation plants, and instrumentation systems where reliability, safety, and durability are paramount.
