Home > Duplex Steel > Duplex Steel Pipes 2205

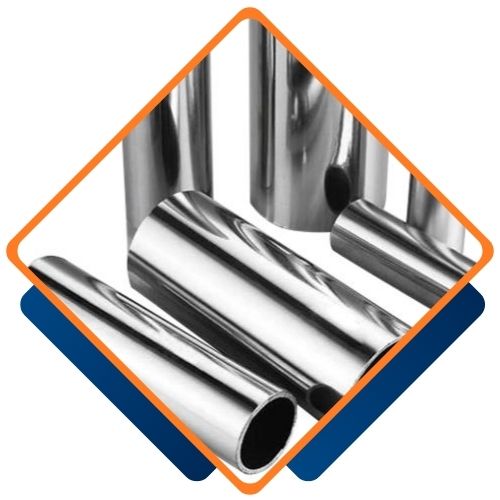

impextubeind, Mumbai, India, is a renowned name in the industrial piping solutions sector, known for its policy of quality and customer-centric services. Impex Tube India is an expert in manufacturing and supplying high-quality Duplex Steel Pipes 2205, which are produced from austenitic-ferritic stainless steel. The pipes are available in various shapes like round, square, and rectangular, showing superior resistance to corrosion, stress and cracking. Duplex 2205 contains high strength and excellent durability and is appropriate for demanding applications in chemical, marine, and oil & gas fields.
Duplex Steel Pipes 2205 contain excellent composition of approximately 22% Chromium, 5-6% Nickel, 3% Molybdenum and Nitrogen and Manganese addition with enhanced strength and corrosion resistance. These pipes have excellent mechanical properties with tensile strength of around 620 MPa and yield strength of 450 MPa and good elongation and impact toughness. Physically, Duplex 2205 has a density of 7.8 g/cm³, melting point of around 1350°C, and low thermal expansion with high thermal conductivity, which makes it suitable for applications involving high-performance and high-pressure.
| Pipe Standard | AISI, DIN, EN, GB, JIS, ASTM, ASME |
|---|---|
| Seamless Pipe Outer Diameter | 6.00 MM OD up – 250 MM OD, Sizes up to 12 Inch NB |
| Welded Pipes sizes | 5.0 MM – 1219.2 MM |
| EFW Pipes size | 5.0 MM to 1219.2 MM |
| Pipe Thickness | 0.3MM to 50 MM |
| Size | 3.35 – 101.6 MM OD, 15 – 150 NB Inch |
| Size | 6.35 – 152 MM outer diameter |
| wall thickness | 0.020 inch to 0.220inch |
| Schedule | Schedule 5, 10, 40, 80, 80S, 160, XXS, XS Duplex 2205 Pipe Supplier |
| Finish | Annealedand Pickled, Polished, Mirror finish, Bright and Annealed, MF, NO.1, NO.4, 2B, BA, HL, 8K, etc |
| Form | Straight Pipes, Round, Rectangular, Hydraulic, Square, Coiled, U Shape, Hollow etc. |
| Pipe Length | Single Random, Double Random, Standard & Cut length |
| End | Plain End, Beveled End, Treaded Pipe. |
| Tubes Types | Alloy 2205 Seamless, ERW, EFW, Welded, Fabricated, CDW, DOM, CEW Pipes |
| Pipe Marking | All Pipes are marked as follows: Supplier or Manufacturer’s Name, Grade, Standard, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Boiler, Heatexchanger, Oil Tube, Gas Tube and Fluid Tube |
| Carbon | Nitrogen | Phosphorus | Silicon | Manganese | Molybdenum | Iron | Chromium | Sulfur | Nickel |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| Density | Melting Point | Yield Strength | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C | Psi – 80000, MPa – 550 | Psi – 116000, MPa – 800 | 15 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Selecting Duplex Steel Pipes 2205 from Impex Tube India guarantees durability and quality, since these pipes feature superior corrosion resistance and strength. Our dedication to superior service and timely delivery guarantees customer satisfaction for a range of industrial applications. Our stainless steel product expertise assures you of obtaining a top-level solution designed around your requirements.
Impex Tube India, being among the largest distributors of Duplex Steel Pipes 2205 in Mumbai, India, provides a vast array of pipes and tubes suitable for a number of industrial purposes. With its large inventory and dedication to world-class service, it is the first point of contact for stainless steel items in the region.
Yes, we have custom sizes available for Duplex Steel Pipes 2205 according to your specifications. At Impex Tube India , our team strives to provide customized solutions for all your Piping & tubing requirements. For further information, get in touch with us at sales@impextubeind.com.
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex 2205 Pipe | 1.4462 / 1.4462 | S31803 / S32205 |
| Pipe Outer Diameter in mm | Pipe Wall Thickness in mm | inches | Schedule | Kg/m |
|---|---|---|---|---|
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Duplex Steel 2205 pipes are used very widely across a variety of industries due to their outstanding strength and corrosion resistance. These pipes are most often utilized in oil and gas drilling, offshore structures, chemical processing plants, and marine applications. The pipes’ durability qualifies them for applications in heat exchangers, pressure vessels, and structural members where extreme conditions exist. They are also used in desalination plants, pulp and paper industries, and food processing equipment. Duplex 2205‘s ability to withstand high pressure, stress, and aggressive chemicals ensures consistent performance in industrial applications onshore and offshore.
