Home > Stainless Steel > Stainless Steel 316L Tubing

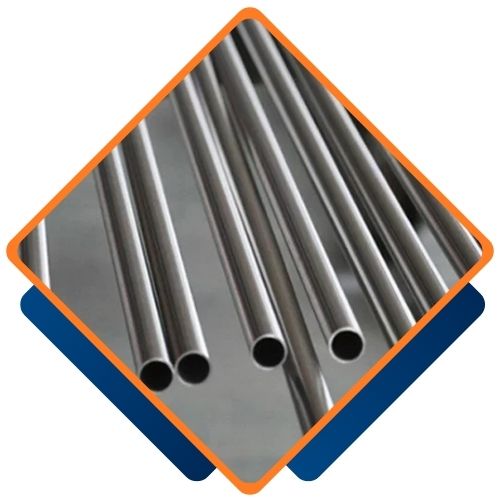

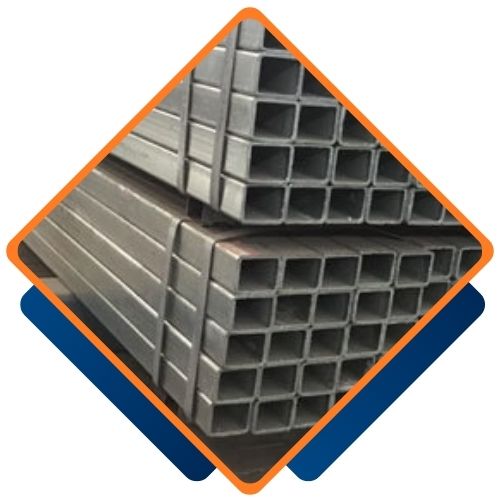

Impex Tube India a company founded in Mumbai, India is a prestigious manufacturer and provider of high-quality stainless steel items. Providing solutions to various industries globally. Stainless Steel 316L Tubing ranks among our most prominent and highly regarded products. Which is fabricated from low-carbon austenitic stainless steel (Grade 316L) recognized for its superior corrosion resistance, particularly in seawater and chemical environments. This tubing comes in various shapes such as round, square and rectangular providing versatility for structural and fluid use. Its high strength, durability and clean finish make it suitable for critical industrial applications.
Stainless Steel 316L Tubing has a chemical composition of Chromium (16–18%), Nickel (10–14%), Molybdenum (2–3%) with low carbon content (≤0.03%) to improve corrosion resistance. Its mechanical properties are tensile strength of approximately 485 MPa, yield strength of 170 MPa (min), and elongation of 40% (min) providing great formability and toughness. It is physically 8.0 g/cm³ in density, has a melting point of about 1375–1400°C, and thermal conductivity of 16.3 W/m·K. These qualities render it best for extreme environments with the need for strength, longevity and resistance to chemicals or heat.
| Tube Range | 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG |
| Outer Diameter | 3.00 mm – 219.10 mm |
| Wall Thickness | 0.40 mm – 12.70 mm |
| Schedules | 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH |
| Length | Upto 30 meters, Custom Cut Lengths |
| Specifications | ASTM A213 / ASTM SA213 |
| Types | Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes |
| STANDARD | UNS | WERKSTOFF NR. | JIS | AFNOR | BS | GOST | EN |
| SS 316L | S31603 | 1.4404 / 1.4435 | SUS 316L | Z3CND17‐11‐02 / Z3CND18‐14‐03 | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SS | 316L |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316L |
| Tensile Strength (MPa) min | 485 |
| Yield Strength 0.2% Proof (MPa) min | 170 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Selecting Stainless Steel 316L Tubing from Impextubeind guarantees durability and quality, since these tubing, feature superior corrosion resistance and strength. Our dedication to superior service and timely delivery guarantees customer satisfaction for a range of industrial applications. Our Stainless Steel product expertise assures you of obtaining a top-level solution designed around your requirements.
Impextubeind, one of the largest suppliers of Stainless Steel 316L Tubing in Mumbai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Our extensive inventory and commitment to exceptional service make us a preferred choice for stainless steel products in the region.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 316L | S31603 | S31603 | – | 1.4404 | X5CrNiMo17-12-2 | 2348 | SUS 316L |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 316L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Yes, we offer custom sizes for Stainless Steel 316L Tubing to meet your specific requirements. Our team at Impextubeind is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@impextubeind.com.

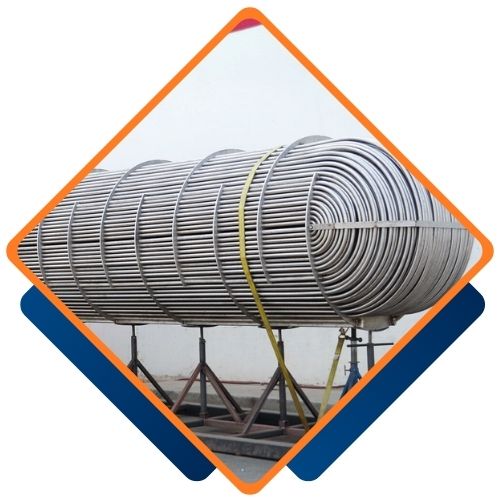

Stainless Steel 316L Tubing is extensively applied in industries because of its superior corrosion resistance, strength, and clean finish. It is best suited for chemical processing, marine applications, pharmaceutical equipment, food and beverage processing, and medical devices. Its low carbon content renders it weldable and suitable for high-temperature applications and its durability. Makes it ideal for use in oil and gas, heat exchangers, condensers, and hydraulic systems. The hygienic nature and smooth surface of the tubing also make it an industry favorite in biotech and dairy applications, with long-term performance in demanding and sterile environments.
