Home > Stainless Steel > Stainless Steel Condenser Tubing
Impex Tube India is a reliable manufacturer and supplier of high-quality pipes and tubes in Mumbai, India, with specialization in Stainless Steel Condenser Tubing. Known for providing products of international quality standards, the company offers corrosion-resistant and long–lasting tubing solutions suitable for thermal and industrial applications. With modern infrastructure and a trained team, Impex Tube India provides precision-engineered products meeting both domestic and international markets. Their Stainless Steel Condenser Tubing is well known for its durability, performance, and resistance to extreme operating conditions in many industries.
Stainless Steel Condenser Tubing is mostly made up of chromium (16–18%), nickel (8–10.5%), and trace elements like molybdenum, manganese, and silicon, which offer high corrosion resistance and durability. It also has mechanical features such as a tensile strength of approximately 515 MPa, yield strength of 205 MPa, and elongation of 35–40% based on grade. The tubes are specifically formed to withstand high-pressure and fluctuating temperature requirements, hence recommended for condenser and heat exchanger systems. The smooth internal surface allows enhanced heat transfer capability, and the robust structure promises long-term operational reliability in applications where strength matters.
| Specifications | ASTM A213, ASTM A249, ASTM A269 |
| Size Range | 6 mm OD to 219.1 mm OD |
| Outside Diameter | From 6mm~2500mm |

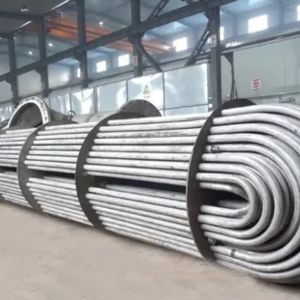

| Length | 1 Mtr Upto 32 Mtrs Long / U-Tube Length – 32 Mtrs U Tube Coil – 50 Mtrs |
| Thickness | 0.7 mm Thick To12.7 mm Thick |

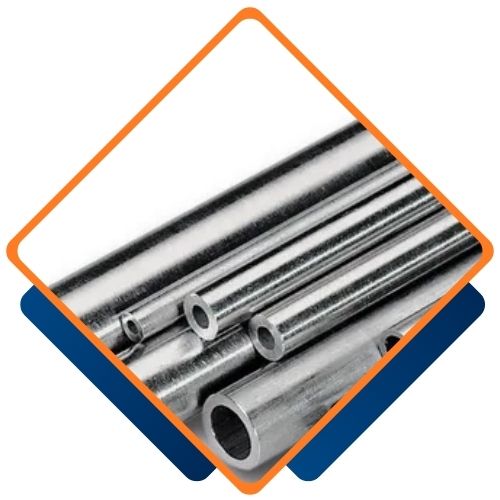

| Form | Seamless, Welded, Hot Rolled, Cold Drawn |

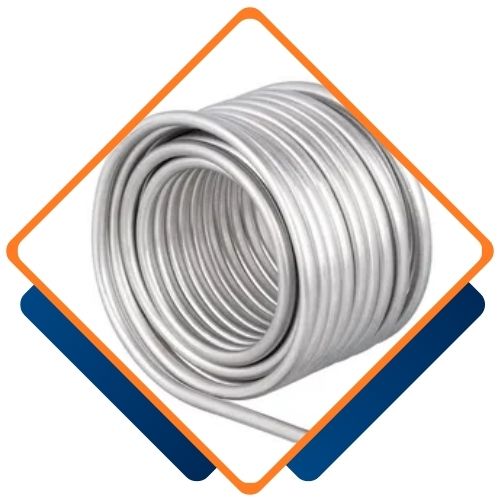

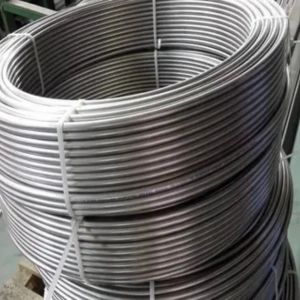

| Shapes | Straight tube, Coil tubing |
| Ends | Plain end, Bevelled end |
| Grades | TP – 304,304L,316,316L,201 |
| STAINLESS STEEL Condenser TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel Condenser Tubing from Impex Tube India ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Impex Tube India, one of the largest suppliers of Stainless Steel Condenser Tubing in Mumbai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| 12.70 mm OD | x | 0.6 mm wall | in lengths up to 20 m (65.62 ft) |
| 15.00 mm OD | x | 1.22 mm wall | in lengths up to 20 m (65.62 ft) |
| 19.05 mm OD | x | 1.65 mm wall | in lengths up to 20 m (65.62 ft) |
| 25.40 mm OD | x | 2.11 mm wall | in lengths up to 20 m (65.62 ft) |
| 38.10 mm OD | x | 2.64 mm wall | in lengths up to 20 m (65.62 ft) |
Yes, we offer custom sizes for Stainless Steel Condenser Tubing to meet your specific requirements. Our team at Impex Tube India is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@impextubeind.com.

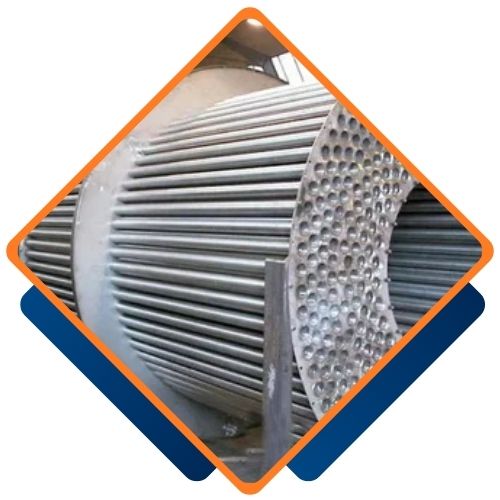

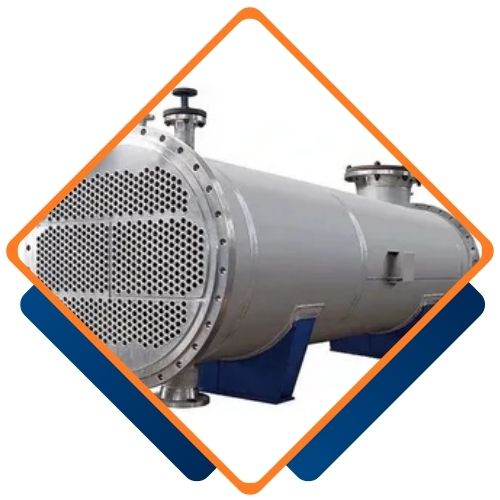

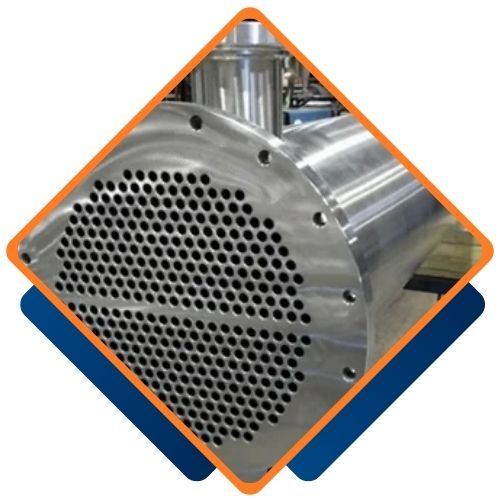

Stainless Steel Condenser Tubing finds widespread application in industries that require effective heat transfer and corrosion resistance. It finds general use in power plants, petrochemical facilities, and refineries as components of condenser and heat exchanger assemblies. In refrigeration and HVAC industries, it facilitates energy-effective cooling operations. It is depended upon by the food and beverage industry for sanitary fluid handling under thermal stress. It is also applied in the marine sector owing to its outstanding resistance against corrosion by seawater. It has a capacity for pressure resistance, high-temperature resistance, and resistance to aggressive media, hence making it an all-purpose and critical material used in thermal and industrial applications.
