Home > Stainless Steel >Stainless Steel 347 and 347H EFW Pipes

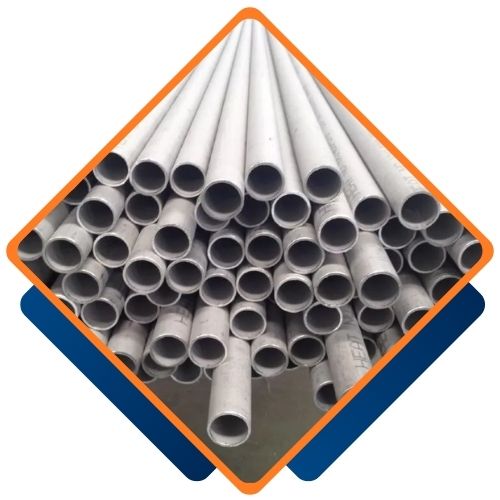

Mumbai-based Impex Tube India is a well-established manufacturer and supplier of high-quality pipes and tubes, providing excellent stainless steel solutions for industrial usage. Some of its high-quality products include Stainless Steel 347 and 347H EFW (Electric Fusion Welded) Pipes, renowned for their superb resistance to corrosion at high temperatures and high mechanical strength. These pipes are made by utilizing cutting-edge methods and rigorous quality standards to match international standards. Backed by quality, reliability, and customer satisfaction, Impex Tube India caters to Indian industries and global industries alike with reliable piping solutions.
Stainless Steel 347 and 347H EFW Pipes are stabilized austenitic stainless steels having columbium (niobium) addition, which helps in improving the resistance to intergranular corrosion. The alloys usually consist of chromium (17–19%), nickel (9–13%), and columbium/tantalum for stabilizing. Type 347H contains more carbon (0.04–0.10%) for better heat resistance at higher temperatures. These pipes have a minimum tensile strength of 515 MPa and yield strength of 205 MPa, as well as remarkable creep resistance and strength. Their solid mechanical and thermal characteristics make them ideal for high-pressure and high-temperature industrial uses.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | EN | JIS | GOST |
| SS 347 | S34700 | 1.4550 | X6CrNiNb18-10 | SUS 347 | 08Ch18N12B |
| SS 347H | S34709 | 1.4961 | X6CrNiNb18-12 | SUS 347H | – |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | |||
| Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % | 92 | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 347 and 347H EFW Pipes from Impex Tube India guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
We offer custom sizes for Stainless Steel 347 and 347H EFW Pipes to meet your specific needs. Our dedicated team at Impex Tube India provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@impextubeind.com.
Stainless Steel 347 and 347H EFW Pipes find extensive use in applications needing resistance to oxidation at high temperatures and intergranular corrosion. Typical uses involve heat exchangers, superheaters, boilers, and furnace parts used in power generation and refineries. The pipes are also applied in chemical processing, petrochemical, and pharmaceutical industries where exposure to corrosive and acidic environments is recurrent. They are prized for thermal stability and high strength in aerospace and marine applications. Grade 347H is particularly recommended for high-pressure, high-temperature applications with their improved resistance to creep, thus providing long-lasting durability and reliability under such hostile conditions.
