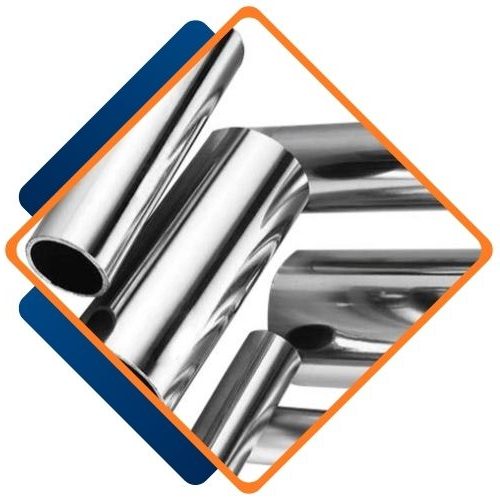

Impex Tubes India is a prominent manufacturer and supplier of high-quality pipes and tubes, headquartered in Mumbai, India, with a dominant presence in domestic as well as international markets. The company is renowned for providing high-quality Aluminium Seamless Tubing, designed to provide high performance and accuracy. These tubes are manufactured without any welded seams, providing uniform strength, increased durability, and a fine finish. Impex Tubes India offers Aluminium Seamless Tubing that adheres to stringent industry standards, and hence it is suitable for high-reliability applications in the aerospace, automotive, marine, and industrial industries where strength and reliability are of utmost importance.
Aluminium Seamless Tubing is usually produced with high-strength aluminium alloys like 6061, 6082, or 7075. Aluminium tubes consist of aluminium (more than 95%) with elements such as magnesium, silicon, and zinc, based on the alloy. Seamless manufacturing leads to uniform thickness in walls and better mechanical properties. These tubes have tensile strengths between 150 MPa and more than 500 MPa and demonstrate superior corrosion resistance, fatigue strength, and weldability. The lack of welds improves structural integrity, and Aluminium Seamless Tubing is thus suitable for high-pressure and precision-based applications in many industries.
Standards : ASTM B345, B241, B429 / ASME SB345, SB241, SB429
Standard : AMS QQ-A-200/8, AMS QQ-A-200/9, AMS 4160/4161/4172
Size : 8 (1-1/2″ / 1.900″)
Outer Diameter : 1″ through 16″
Length : Double Random, Single Random, Cut Length
Thickness : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End : Plain End, Beveled End, Threaded
ASTM B429 / ASME SB429 – Standard Specification for Aluminum-Alloy Extruded Structural Tube and Tube
EN AW-AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Round Tube
ISO AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Tubing
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.15 max | 0.05 / 0.25 | 0.05 max | Bal |
| 6061 | 0.7 | 0.4-0.8 | 0.8-1.2 | 0.15 | 0.15-0.4 | 0.25 | 0.15 | 0.15-0.35 | 0.005/0.15 | Remainder |
| 6068 | 0.50 max | 0.7 – 1.3 | 0.06-1.20 | 0.40-1.00 | 0.10 max | 0.20 max | 0.10 max | 0.25 max | 0.05 max | Bal |
| 7075 min | 2.10 | 1.20 | 5.10 | 0.18 | ||||||
| 7075 max | 0.50 | 0.40 | 2.90 | 0.30 | 2.00 | 6.10 | 0.20 | 0.28 | 0.05 |
| Alloy | Temper | UTS(Mpa) | % Elongation | Tensile Strength | Hardness Brinell | Proof Stress | Yield Strength (PSI) | Shear Strength (PSI) | Brinell Hardness | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | ||||||
| H12 | 95 | 130 | 5 | 6 | 7 | |||||||
| H14 | 110 | 145 | 3 | 4 | 5 | |||||||
| H16 | 130 | 165 | 2 | 3 | 4 | |||||||
| H18 | 150 | — | 2 | 2 | 3 | |||||||
| 5083 | 12 Min % | 275 – 350 MPa | 75 HB | 125 Min MPa | ||||||||
| 6061 | – | 45,000 | 12 | 40,000 | 31,000 | 95 | ||||||
| 6082 | 8 | 295 | 95 | – | 240 | – | – | |||||
| 7075 T6, T651 | 11 | 83-572 | 73- 503 | 150 | ||||||||
| 7075 T73, T7351 | 13 | 73-503 | 63-434 | NA | ||||||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Aluminium Seamless Tubing from Impex Tube India guarantees exceptional quality and performance tailored to your specific needs. Our seamless tubing is crafted from high-grade aluminum alloys, ensuring superior strength and durability while minimizing the risk of leaks or weak points. We adhere to stringent manufacturing standards and quality control processes to deliver reliable products for various applications, including automotive, aerospace, and construction. Additionally, our dedicated team provides expert support and customized solutions, making Impex Tube India your trusted partner for all your aluminium seamless tubing requirements.
Impex Tube India, one of the largest suppliers of Aluminium Seamless Tubing in Mumbai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Aluminium Seamless Tubing to meet your specific requirements. Our team at Impex Tube India is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@impextubeind.com.
| Grade | UNS | USA | Japan | France | ISO | WNR | EN | DIN | ISO | BS (OLD) |
| 1100 | A91100 | AA1100 | JIS A1100P | NF 1100 | Al 99.0 Cu. | – | – | – | – | – |
| 6082 | A96082 | AA6082 | – | – | – | 3.2315 | AW-6082 | AlMgSi1 | AlSi1MgMn | HE30 |
| 5083 | A95083 | 5083 | – | – | AlMg4,5Mn0,7 | 3.3547 | AW-AlMg4,5Mn0,7 | AlMg4,5Mn | – | – |
| 6061 | A96061 | AA6061 | – | – | – | 3.3211 | AW-AlMg1SiCu EN AW-6061 | AlMgSiCu | AlMg1SiCu | HE20 |
| 7075 | A97075 | 7075 | 3.4365 | ENAW-AlZn5.5MgCu EN AW-7075 | AlZnMgCu1.5 | AlZn6MgCu | 7075 L95 L96, V95 |
Aluminum Seamless Tubing finds universal application in industries where strength, precision, and corrosion resistance are of prime importance. In the aerospace industry, it is used for hydraulic lines, fuel systems, and structural components because of its lightweight and high-performance ability. It is used by the automotive industry in roll cages, exhaust systems, and suspension parts, taking advantage of its strength-to-weight ratio. In marine environments, it serves in piping systems and structural elements, resisting saltwater corrosion. Additionally, Aluminium Seamless Tubing is used in industrial equipment, medical devices, heat exchangers, and sports equipment. Its seamless construction ensures leak-proof performance, reliability, and enhanced safety in critical applications.
