Home > Alloy Steel > Alloy Steel EFW Pipe
Impex Tube India is a well-known manufacturer and supplier located in Mumbai, India, producing high-quality Alloy Steel EFW Pipes. Being dedicated to excellence and innovation, the company supports various industrial demands by providing internationally standard products. Their Alloy Steel EFW Pipes are commonly applied in durability, corrosion-resistant and high-performance applications. Reputed for dependability and high-quality craftsmanship Impex Tube India is a sought-after name in the international market as a choice provider of premium piping solutions.

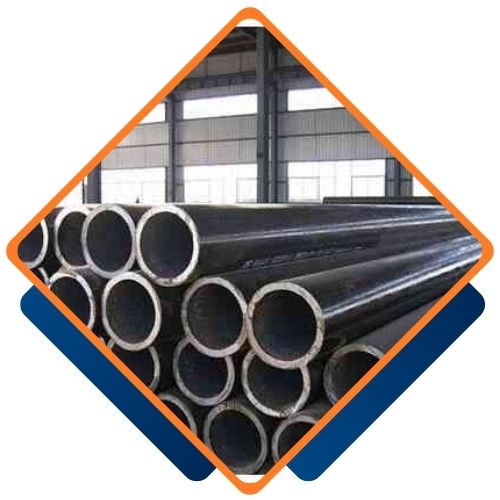

Alloy steel EFW (Electric Fusion Welded) Pipe consist of different elements, such as chromium, molybdenum, nickel and vanadium that add strength and resistance to corrosion. Alloy steel EFW tubes have superior mechanical properties, meaning high tensile strength, toughness and resistance to wear and thermal stress. Their superior weldability and dimensional stability make them fit for use in critical applications. Benefits are their durability, cost-efficiency in extreme temperatures and universality in sectors such as oil and gas, power plants and chemical processing. EFW pipes are reliable performers under demanding conditions and hence the first choice for demanding engineering projects.
| Alloy Steel EFW Pipes Specification | ASTM A691 / ASME SA691 |
| Alloy Steel EFW Pipes Grades | ASTM A691 1-1/4CR, ASTM A691 2-1/4CR, ASTM A691 3CR,ASTM A672 , ASTM A691 5CR, ASTM A691 9CR, ASTM A691 91, ASME SA691 1-1/4CR, ASME SA691 2-1/4CR, ASME SA691 3CR, ASME SA691 5CR, ASME SA691 9CR, ASME SA691 91 |
| Alloy Steel EFW Pipes Type | EFW (Electric Fusion Welded Pipes ) |
| Alloy Steel EFW Pipes Class Designation | CLASS 10, ,11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 40, 41, 42, 43 |
| Alloy Steel EFW Pipes Outer Diameter Size | 16″ NB to 100″ NB (Nominal Bore Size) |
| Alloy Steel EFW Pipes Wall Thickness | Schedule 20 to Schedule XXS (Heavier On Request) Up to 75 mm Thickness |
| Alloy Steel EFW Pipes Length | 5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size. |
| Alloy Steel EFW Pipes Ends | Plain Ends / Beveled Ends / Coupling |
| Alloy Steel EFW Pipes Delivery Conditions | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered – BR / N / Q /T |
| Alloy Steel EFW Pipes Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
| Alloy Steel EFW Pipes Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, Charpy V-Notch Test, Radiograph HIC Examination, XRAY, Ultrasonic EXAMINATION, Liquid Penetrant, Magnetic Particle, HIC Test, SSC Test, SWC, H2 Service, IBR, PWHT Etc. |
| Alloy Steel EFW Pipes Dimension | All Pipes Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
| Alloy Steel EFW Pipes Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| Alloy Steel EFW Pipess Packaging | Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Alloy Steel EFW Pipes Shipment & Transportation | By Road – Truck / Train, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes |
| Alloy Steel EFW Pipes Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Class | Heat Treatment on Pipe | Radiography, see Section | Pressure Test, see: |
| A691 / SA691 EFW Pipe Class 10 | none | none | none |
| A691 / SA691 EFW Pipe Class 11 | none | 9 | none |
| A691 / SA691 EFW Pipe Class 12 | none | 9 | 8.3 |
| A691 / SA691 EFW Pipe Class 13 | none | none | 8.3 |
| A691 / SA691 EFW Pipe Class 20 | stress relieved, see 5.3.1 | none | none |
| A691 / SA691 EFW Pipe Class 21 | stress relieved, see 5.3.1 | 9 | none |
| A691 / SA691 EFW Pipe Class 22 | stress relieved, see 5.3.1 | 9 | 8.3 |
| A691 / SA691 EFW Pipe Class 23 | stress relieved, see 5.3.1 | none | 8.3 |
| A691 / SA691 EFW Pipe Class 30 | normalized, see 5.3.2 | none | none |
| A691 / SA691 EFW Pipe Class 31 | normalized, see 5.3.2 | 9 | none |
| A691 / SA691 EFW Pipe Class 32 | normalized, see 5.3.2 | 9 | 8.3 |
| A691 / SA691 EFW Pipe Class 33 | normalized, see 5.3.2 | none | 8.3 |
| A691 / SA691 EFW Pipe Class 40 | normalized and tempered, see 5.3.3 | none | none |
| A691 / SA691 EFW Pipe Class 41 | normalized and tempered, see 5.3.3 | 9 | none |
| A691 / SA691 EFW Pipe Class 42 | normalized and tempered, see 5.3.3 | 9 | 8.3 |
| A691 / SA691 EFW Pipe Class 43 | normalized and tempered, see 5.3.3 | none | 8.3 |
| Pipe Grade | ASTM Specification | Post-Weld Heat-Treat Temperature Range (Strees Relieving), F ( C) | Normalizing Temperature, max unless otherwise noted, F ( C) | Quenching Temperature, max unless otherwise noted, F ( C) | Tempering Temperature, min, F ( C) |
| CM-65 | A204/ A204M | 1100 to 1200 (590 to 650) | 1700 (925) | … | … |
| CM-70 | A204/ A204M | 1100 to 1200 (590 to 650) | 1701 (925) | … | … |
| CM-75 | A204/ A204M | 1100 to 1200 (590 to 650) | 1702 (925) | … | … |
| CMSH-70 | A537/A 537M | 1100 to 1200 (590 to 650) | 1703 (925) | … | … |
| CMS-75 | A 299/A 299M | 1100 to 1200 (590 to 650) | 1704 (925) | … | … |
| CMSH-80 | A537/A 537M | 1100 to 1200 (590 to 650) | A | 1700 (925) | 1100 to 1250 (590 to 675) |
| 1/2 CR | A387 / A387M | 1100 to 1300 (590 to 705) | 180 (1010) | 1700 (925) | 1150 to 1375 (620 to 745) |
| 1CR | A387 / A387M | 1100 to 1350 (590 to 730) | 181 (1010) | 1700 (925) | 1150 to 1375 (620 to 745) |
| 1-1/4 CR | A387 / A387M | 1100 to 1375 (590 to 745) | 182 (1010) | 1700 (925) | 1150 to 1375 (620 to 745) |
| 2-1/4 CR | A387 / A387M | 1200 to 1400 (650 to 760) | 183 (1010) | 1700 (925) | 1250 to1400 (675 to 760) |
| 3CR | A387 / A387M | 1200 to 1400 (650 to 760) | 184 (1010) | 1700 (925) | 1250 to1400 (675 to 760) |
| 5CR | A387 / A387M | 1200 to 1400 (650 to 760) | 185 (1010) | 1700 (925) | 1300 to 1400 (705 to 760) |
| 9CR | A387 / A387M | 1325 to 1375 (715 to 745) | B | … | 1325 to 1375 (715 to 745) |
| 91 | A387 / A387M | 1350 to 1420 (730 to 770) | 1350 to 1420 (730 to 770) | 1900 min (1040 min) | 1350 to 1440 (730 to 780) |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Select Alloy Steel EFW pipes from Impex Tube India for the best quality and unparalleled durability. Engineered to provide outstanding corrosion resistance and high strength, these pipes are perfect for various industrial uses. At Impex Tube India, we focus on excellent service and timely delivery to guarantee complete customer satisfaction with each order. Supported by extensive experience in stainless steel products we provide top-notch customized solutions according to your specific needs.
Impex Tube India, one of the major alloy steel EFW pipe suppliers in Mumbai, India, offers a comprehensive range of high-quality pipes and tubes customized for various industrial applications. With its large stock inventory and commitment to excellent customer service, the company has emerged as the go-to supplier of stainless steel products in the country.
Impex Tube India is expert in providing customized Alloy Steel EFW pipes according to your specific needs. Our team is dedicated to providing individualized solutions to meet all your piping and tubing requirements. For further details, contact us at sales@impextubeind.com.
Alloy Steel EFW (Electric Fusion Welded) pipe find extensive applications in different industries owing to their high strength, corrosion resistance and durability. They are often used in power plants, petrochemical units, and gas and oil industries for conveying high-pressure gases and fluids. They find applications as boiler tubes heat exchangers and super heaters owing to their ability to resist heat. Also they are employed in structural applications chemical processing and marine environments where high performance and reliability are vital under demanding conditions.
