Home > Carbon Steel > CDS Tubing

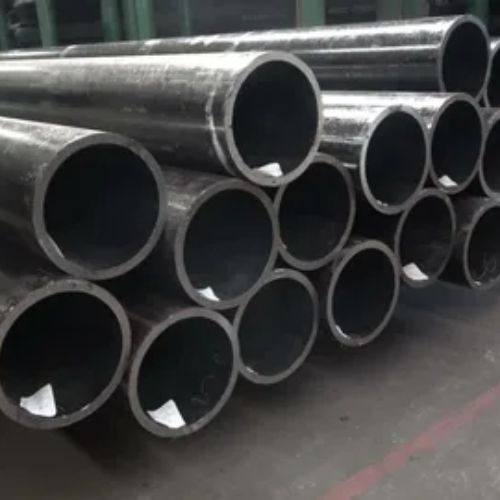

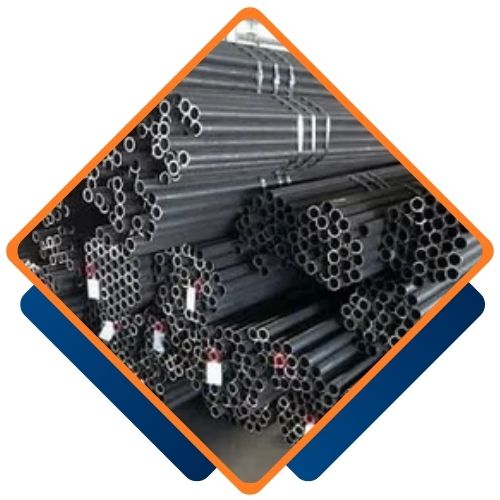

Impex Tube India, a renowned Mumbai-based manufacturer and supplier, provides high-quality Cold Drawn Seamless (CDS) Tubing for various industrial and engineering applications. With its exceptional dimensional precision, fine finish, and high strength, Impex Tube India’s CDS tubing is suitable for precision parts, automotive systems, and hydraulic systems. With state-of-the-art manufacturing plants and customer-oriented focus, we provide consistent performance and timely delivery. Our CDS tubing is designed to international standards, making us a top choice in both domestic and international markets.
CDS (Cold Drawn Seamless) Tubing is produced from high-quality carbon or alloy steel containing materials such as carbon (0.15–0.25%), manganese, silicon, and minute traces of sulfur and phosphorus. Its cold drawing enhances mechanical characteristics, offering superior dimensional precision, a smooth finish surface, and added strength. CDS tubing exhibits good tensile strength (up to 800 MPa), desirable yield strength, and improved hardness and fatigue resistance. It also has excellent machinability and formability, which makes it suitable for applications requiring precision, toughness, and high-pressure resistance in automotive, hydraulic, and mechanical applications.
| Condition | Nominal Yield Strength psi | Nominal Ultimate Strength psi | Nominal Elongation in 2% | Equivalent Rockwell Hardness | Equivalent Brinell Hardness |
| GRADE 1018 c .15/.20 Mn .60/90 P .40 max S .050 max | |||||
| Hot-Rolled | 35,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | 38,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | 33,000 | 50,000 | 40 | B-57 | 97 |
| As-Drawn | 70,000 | 85,000 | 10 | B-87 | 170 |
| CD-Stress Relief Annealed | 60,000 | 80,000 | 15 | B-85 | 163 |
| GRADE 1020 C. 18/.23 Mn .30/.60 P .040 max S .050 max | |||||
| Hot-Rolled | 38,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | 40,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | 33,000 | 53,000 | 40 | B-62 | 105 |
| As-Drawn | 65,000 | 80,000 | 10 | B-85 | 163 |
| CD-Stress Relief Annealed | 60,000 | 75,000 | 15 | B-81 | 149 |
| GRADE 1026 C .22/.28 Mn .60/.90 P .030 max S .050 max | |||||
| Hot-Rolled | 47,000 | 70,000 | 28 | B-77 | 137 |
| Normalized | 50,000 | 67,000 | 33 | B-74 | 131 |
| Soft-Annealed | 36,000 | 60,000 | 35 | B-68 | 116 |
| As-Drawn | 72,000 | 87,000 | 10 | B-89 | 179 |
| CD-Stress Relief Annealed | 65,000 | 82,000 | 15 | B-86 | 167 |
| OUTSIDE AND INSIDE DIAMETER TOLERANCES FOR ROUND COLD-WORKED SEAMLESS TUBING PER ASTM A519 | ||||||||||
| Outside Diameter Size Range in | Thermal Treatment after Final Cold Work Producing Size | |||||||||
| Wall Thickness as Percent of OD | None, or not exceeding 1100°F. Nominal Temperature | Heated Above 1100°F. Nominal Temperature Without Accelerated Cooling | ||||||||
| OD, in | ID, in | OD, in | ID, in | |||||||
| Over | Under | Over | Under | Over | Under | Over | Under | |||
| Up to 0.499 | All | 0.004 | 0.000 | — | — | 0.005 | 0.002 | — | — | |
| 0.500-1.699 | All | 0.005 | 0.000 | 0.000 | 0.005 | 0.007 | 0.002 | 0.002 | 0.007 | |
| 1.700-2.099 | All | 0.006 | 0.000 | 0.000 | 0.006 | 0.006 | 0.005 | 0.005 | 0.006 | |
| 2.100-2.499 | All | 0.007 | 0.000 | 0.000 | 0.007 | 0.008 | 0.005 | 0.005 | 0.008 | |
| 2.500-2.899 | All | 0.008 | 0.000 | 0.000 | 0.008 | 0.009 | 0.005 | 0.005 | 0.009 | |
| 2.900-3.299 | All | 0.009 | 0.000 | 0.000 | 0.009 | 0.011 | 0.005 | 0.005 | 0.011 | |
| 3.300-3.699 | All | 0.010 | 0.000 | 0.000 | 0.010 | 0.013 | 0.005 | 0.005 | 0.013 | |
| 3.700-4.099 | All | 0.011 | 0.000 | 0.000 | 0.011 | 0.013 | 0.007 | 0.010 | 0.010 | |
| 4.100-4.499 | All | 0.012 | 0.000 | 0.000 | 0.012 | 0.014 | 0.007 | 0.011 | 0.011 | |
| 4.500-4.899 | All | 0.013 | 0.000 | 0.000 | 0.013 | 0.016 | 0.007 | 0.012 | 0.012 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
When you choose CDS Tubing from Impex Tube India, you can count on exceptional quality and long-lasting durability. These tubes offer excellent corrosion resistance and high strength, making them perfect for various industrial applications. Our commitment to outstanding service and reliable delivery guarantees customer satisfaction with every order. With extensive expertise in stainless steel products, we provide premium solutions tailored to meet your unique needs.
Impex Tube India, a top supplier of CDS Tubing in Mumbai, India, offers a comprehensive range of high-quality pipes and tubes for various industrial applications. With an extensive inventory and a commitment to exceptional customer service, they have become the go-to source for stainless steel products in the area.
At Impex Tube India, we specialize in providing custom-sized CDS Tubing designed to meet your specific requirements. Our expert team is committed to delivering personalized solutions for all your piping and tubing needs. For more details, contact us at sales@impextubeind.com.
CDS (Cold Drawn Seamless) Tubing finds extensive application in high-precision, strength, and reliability-demanding industries. In the automotive industry, it is applied to drive shafts, shock absorbers, and fuel injection systems. In hydraulics and pneumatics, it is utilized in cylinder barrels and high-pressure lines because of its smooth bore surface and resistance to pressure. CDS tubing is also essential in machinery manufacturing, aerospace, and structural applications where fatigue strength and dimensional stability are important. Seamless fabrication of CDS tubing prevents weak spots, which makes it ideal for demanding environments. Generally, CDS tubing delivers efficient performance in static as well as dynamic bearing applications
