Home > Copper Nickel > Copper Nickel 90/10 Tubing

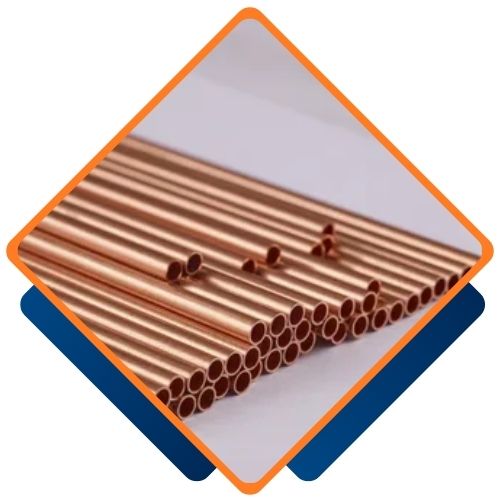

Impex Tube India, based in Mumbai, India is a leading supplier of premium-quality pipes and tubes for numerous industries. Our Copper Nickel 90/10 Tubing is produced using a strong alloy of 90% copper and 10% nickel, ensuring excellent corrosion resistance, particularly in seawater and other extreme conditions. These tubes are available in numerous shapes and sizes, our Copper Nickel 90/10 Tubing ensures exceptional strength, longevity and performance, making it a suitable option for marine, heat exchanger, and desalination processes.
Copper Nickel 90/10 Tubing consists of 90% copper and 10% nickel and demonstrates high corrosion resistance, especially in seawater and brine environments. The mechanical properties involve high strength with a tensile strength level of around 50-70 ksi and good ductility. The tube contains a hardness of about 70-95 HRB. The tube shows good performance in a broad variety of temperatures, ranging from cryogenic to high temperature, without loss of strength. The alloy is also resistant to stress corrosion cracking and is thus well suited for use in marine and industrial applications.
Specification : ASTM B466, B467, B111 / ASME SB466, SB467, SB111
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Wall Thickness : Between 0.15mm and 1.50 mm
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Product Property | US Customary |
|---|---|
| Coefficient of Thermal Expansion | 9.5 10−6Per °F (68-572 F) |
| Density | 0.323 lb/in3 at 68 F |
| Electrical Conductivity | 9 %IACS @ 68 F |
| Electrical Resistivity | 115.0 ohms-cmil/ft @ 68 F |
| Melting Point – Liquidus | 2100 F |
| Melting Point – Solidus | 2010 F |
| Modulas of Elasticity in Tension | 18000 ksi |
| Modulus of Rigidity | 6800 ksi |
| Specific Gravity | 8.94 |
| Specific Heat Capacity | 0.09 Btu/lb/°F at 68 F |
| Thermal Conductivity | 26.0 BTU in/hr.ft2.°F @ 68 F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Selecting Copper Nickel 90/10 Tube from Impex Tube India assures excellent corrosion resistance, good high strength, and durability. Tube from our side is ideal for various industrial processes, ensuring performance and reliability under harsh environments coupled with cost-effective pricing.
Select Copper Nickel 90/10 Tubing by Impex Tube India due to its higher seawater corrosion resistance, biofouling protection, and superior thermal conductivity to suit marine, industrial, and coastal uses with long-lasting performance and reliability.
| Outer Diameter) Sizes | Wall Thk. |
|---|---|
| 3/16″, 1″, 1 5/8″, 3/8″, 16″, 7/8″, 5/16″, 1 1/2″, 7/16″, 1/4″, 2″, 5/8″, 1/2″, 3/4″, 1/8″, 1 1/4″, 2 1/4″ | 0.035 |
| 1/8″ , 3/16″ | 0.016 |
| 1/16″, 1/8″, 3/16″ | 0.010 |
| 1/16″, 1/8″, 1/4″ 3/16″, 3/8″, 5/16″ | 0.020 |
| 1/8″ | 0.012 |
| 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/2″, 1 1/4″, 1 5/8″, 1 7/8″, 2″, 2 1/2″, 3″ | 0.083 |
| 1″ | .134 |
| 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/2″, 1 1/4″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ | 0.065 |
| 3 1/2″ | .375 |
| 1/8″, 1/4″ 3/16″, 3/8″, 5/16″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ | 0.028 |
| 3/4″, 1 1/4″, 1″, 1 1/2″, 2″, 3″, 3 1/4″ | .125 |
| 1/2″, 5/8″, 1 1/4″, 1″, 1 1/2″, 2″ | 0.095 |
| 1/2″, 3/4″, 1 1/4″, 1″, 1 1/2″, 2″ | .109 |
| 3″ | .250 |
| 1/2″, 5/8″, 3/4″, 7/8″, 1 1/4″, 1″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ | .120 |
| 1/4″, 3/16″, 3/8″, 5/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/2″, 1 1/4″, 1 5/8″, 2″, 2 1/4″ |
Yes, we have custom sizes of Copper Nickel 90/10 Tubing to suit your needs. Our staff at Impex Tube India is dedicated to serving you with customized solutions for all your Piping & tubing requirements. For further information, call us at
sales@impextubeind.com.

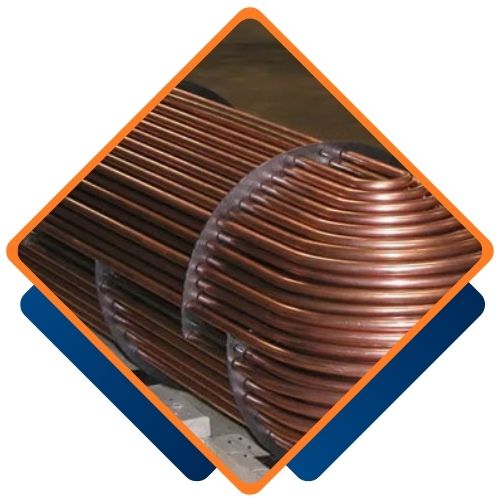

CuNi 90/10 Tubing finds extensive application in marine and industrial applications owing to its high corrosion resistance, especially in seawater environments. It is typically used in heat exchangers, condensers, and cooling systems, where its biofouling and corrosion resistance is critical. The tubing is also used in desalination facilities, offshore oil rigs, and ship construction. Further, it is used in saltwater conditions, brine processing, and chemical processing plants, rendering it a suitable material for systems that are exposed to corrosive materials or extreme conditions.
